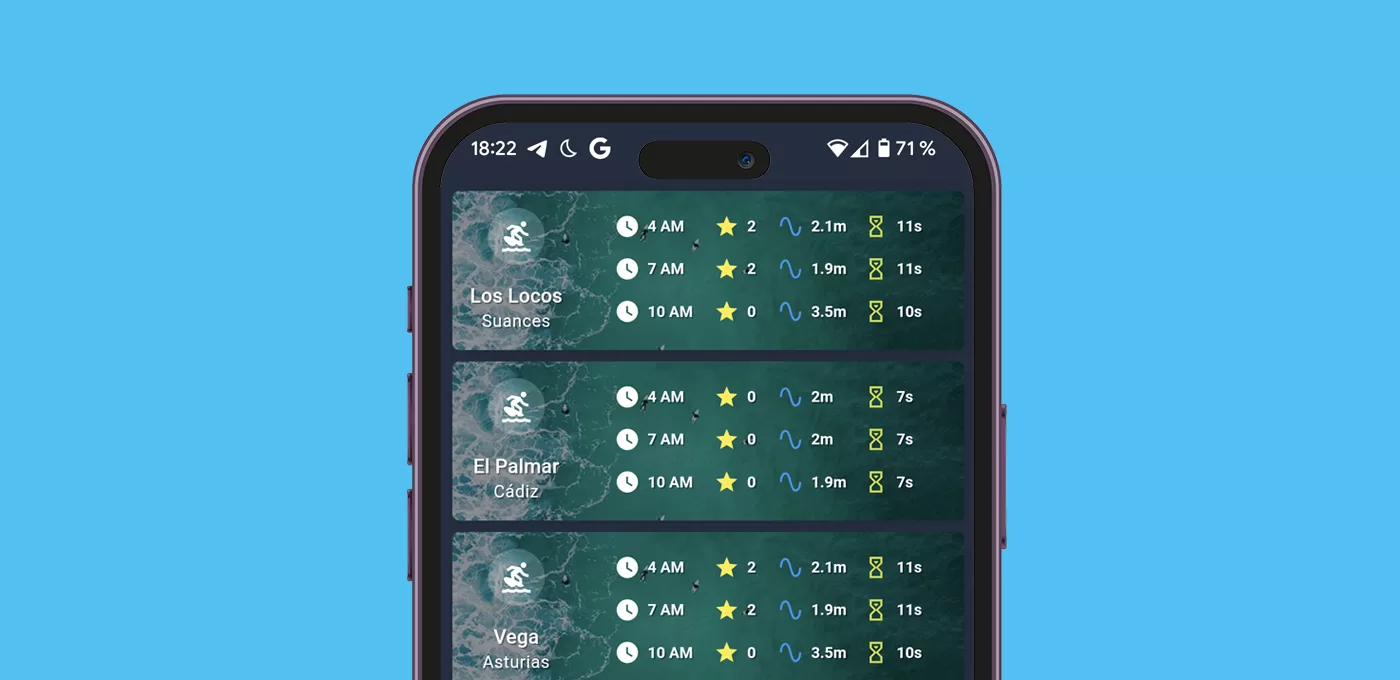

Incopora la tarjeta de forecast deportivo a tu panel de control para disfrutar de las mejores sesiones en tus actividades.
驴Por qu茅 crear una tarjeta de forecast deportivo?
Si practicas alg煤n deporte como el surf, kitesurf, windsurf… ya sabr谩s que la meteorolog铆a tiene una importancia total en tus sesiones deportivas. Probablemente ya usas alguna de las muchas aplicaciones que hay para consultar la previsi贸n y condiciones meteorol贸gicas en tus ‘spots’ favoritos.
Con la tarjeta de forecast deportivo vamos a integrar esta informaci贸n en nuestro panel de control y, si lo deseas, podr谩s incorporarla en tus automatizaciones.
Requisitos previos
Para poder crear la tarjeta de forecast deportivo previamente necesitas:
- Integrar Multiscrape en Home Assistant
- Instalar a trav茅s de HACS las tarjetas de Stack in Card, Card Mod y Mushroom Cards
Construcci贸n de la tarjeta
Para crear la tarjeta de forecast deportivo sigue estos pasos:
- El primer paso es identificar una fuente de la informaci贸n meteorol贸gica. Mi primera opci贸n fue utilizar Windguru, una plataforma conocida y utilizada en todo el mundo para la pr谩ctica de surf y otros deportes acu谩ticos. No obstante, al no permitir la extracci贸n de informaci贸n encontr茅 como alternativa Surf Forecast.
- Lo siguiente que tenemos que hacer es identificar la URL exacta de nuestros ‘spots’ o lugares sobre los que queremos obtener la informaci贸n meteorol贸gica (por ejemplo, 芦Los Locos禄).
- Una vez que has localizado la URL exacta con la previsi贸n meteorol贸gica de tu ‘spot’, vamos a utilizar la t茅cnica de ‘scraping’ para llevar esta informaci贸n a Home Assistant. Si no est谩s familiarizado con esta t茅cnica te recomiendo que antes te leas esta entrada.
- Como hay mucha informaci贸n disponible, vamos a seleccionar unos datos clave que ser谩n los que mostremos en nuestra tarjeta (en mi caso, la hora, el rating, la altura de la ola y el periodo). Adicionalmente incorporaremos un enlace a Windguru para consultar la previsi贸n detallada si nos interesa.
- Teniendo clara la informaci贸n que queremos extraer, incluiremos el siguiente c贸digo en el fichero ‘multiscrape.yaml’ (tendr谩s que crearlo si nunca lo has usado) para cada uno de los ‘spots’. L贸gicamente tendras que adaptar el c贸digo a la informaci贸n que te interese.
- name: Spot Los Locos
resource: https://www.surf-forecast.com/breaks/Los-Locos/forecasts/latest
scan_interval: 3600
sensor:
- unique_id: spot_loslocos
name: Spot
select: "#contdiv > section > div > div.break-header__content > h2 > b"
attributes:
- name: Hour 1
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-time > td:nth-child(2) > span:nth-child(1)"
- name: Meridian 1
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-time > td:nth-child(2) > span:nth-child(2)"
- name: Rating 1
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-rating > td:nth-child(2) > div > div"
- name: Wave Height 1
select: "#forecast-table > div > table > tbody > tr:nth-child(5) > td:nth-child(2) > div > svg > text"
- name: Wave Period 1
select: "#forecast-table > div > table > tbody > tr:nth-child(6) > td:nth-child(2) > strong"
- name: Hour 2
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-time > td:nth-child(3) > span:nth-child(1)"
- name: Meridian 2
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-time > td:nth-child(3) > span:nth-child(2)"
- name: Rating 2
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-rating > td:nth-child(3) > div > div"
- name: Wave Height 2
select: "#forecast-table > div > table > tbody > tr:nth-child(5) > td:nth-child(3) > div > svg > text"
- name: Wave Period 2
select: "#forecast-table > div > table > tbody > tr:nth-child(6) > td:nth-child(3) > strong"
- name: Hour 3
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-time > td:nth-child(4) > span:nth-child(1)"
- name: Meridian 3
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-time > td:nth-child(4) > span:nth-child(2)"
- name: Rating 3
select: "#forecast-table > div > table > tbody > tr.forecast-table__row.forecast-table-rating > td:nth-child(4) > div > div"
- name: Wave Height 3
select: "#forecast-table > div > table > tbody > tr:nth-child(5) > td:nth-child(4) > div > svg > text"
- name: Wave Period 3
select: "#forecast-table > div > table > tbody > tr:nth-child(6) > td:nth-child(4) > strong"
- Tras incluir tu c贸digo, reinicia Home Assistant.
- Por 煤ltimo pega el siguiente c贸digo en tu panel de control para crear la tarjeta de forecast deportivo. Por cierto, si te gusta la imagen del fondo puedes descargarla en mi coleccion de ‘personal trainer’.
type: custom:stack-in-card
card_mod:
style: |
ha-card {
background: linear-gradient(to left, rgba(0, 0, 0, 0.4), rgba(0, 0, 0, 0.4) ), url('/local/images/surf.jpg');
background-position: center;
background-size: cover;
--primary-text-color: white;
--secondary-text-color: #e6fbc9;
}
cards:
- type: custom:mushroom-template-card
primary: Los Locos
secondary: Suances
icon: mdi:surfing
icon_color: white
entity: sensor.spot_loslocos
layout: vertical
card_mod:
style: |
ha-card {
margin-left: -270px;
text-shadow: 1px 1px #0005;
}
tap_action:
action: url
url_path: https://www.windguru.cz/131219
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -105px;
margin-left: 105px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:clock
icon_color: white
content: >-
{{ state_attr('sensor.spot_loslocos','hour_1') }} {{
state_attr('sensor.spot_loslocos','meridian_1') }}
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -105px;
margin-left: 175px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:star
icon_color: yellow
content: '{{ state_attr(''sensor.spot_loslocos'',''rating_1'') }}'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -105px;
margin-left: 220px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:sine-wave
icon_color: blue
content: '{{ state_attr(''sensor.spot_loslocos'',''wave_height_1'') }}m'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -105px;
margin-left: 280px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:timer-sand
icon_color: lime
content: '{{ state_attr(''sensor.spot_loslocos'',''wave_period_1'') }}s'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -75px;
margin-left: 105px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:clock
icon_color: white
content: >-
{{ state_attr('sensor.spot_loslocos','hour_2') }} {{
state_attr('sensor.spot_loslocos','meridian_2') }}
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -75px;
margin-left: 175px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:star
icon_color: yellow
content: '{{ state_attr(''sensor.spot_loslocos'',''rating_2'') }}'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -75px;
margin-left: 220px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:sine-wave
icon_color: blue
content: '{{ state_attr(''sensor.spot_loslocos'',''wave_height_2'') }}m'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -75px;
margin-left: 280px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:timer-sand
icon_color: lime
content: '{{ state_attr(''sensor.spot_loslocos'',''wave_period_2'') }}s'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -45px;
margin-left: 105px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:clock
icon_color: white
content: >-
{{ state_attr('sensor.spot_loslocos','hour_3') }} {{
state_attr('sensor.spot_loslocos','meridian_3') }}
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -45px;
margin-left: 175px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:star
icon_color: yellow
content: '{{ state_attr(''sensor.spot_loslocos'',''rating_3'') }}'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -45px;
margin-left: 220px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:sine-wave
icon_color: blue
content: '{{ state_attr(''sensor.spot_loslocos'',''wave_height_3'') }}m'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
- type: custom:mushroom-chips-card
card_mod:
style: |
ha-card {
margin-top: -45px;
margin-left: 280px;
--primary-text-color: white;
}
chips:
- type: template
tap_action:
action: none
icon: mdi:timer-sand
icon_color: lime
content: '{{ state_attr(''sensor.spot_loslocos'',''wave_period_3'') }}s'
card_mod:
style: |
ha-card {
background: transparent!important;
box-shadow: none!important;
border: 0px;
height: 30px;
text-shadow: 1px 1px #0005;
}
